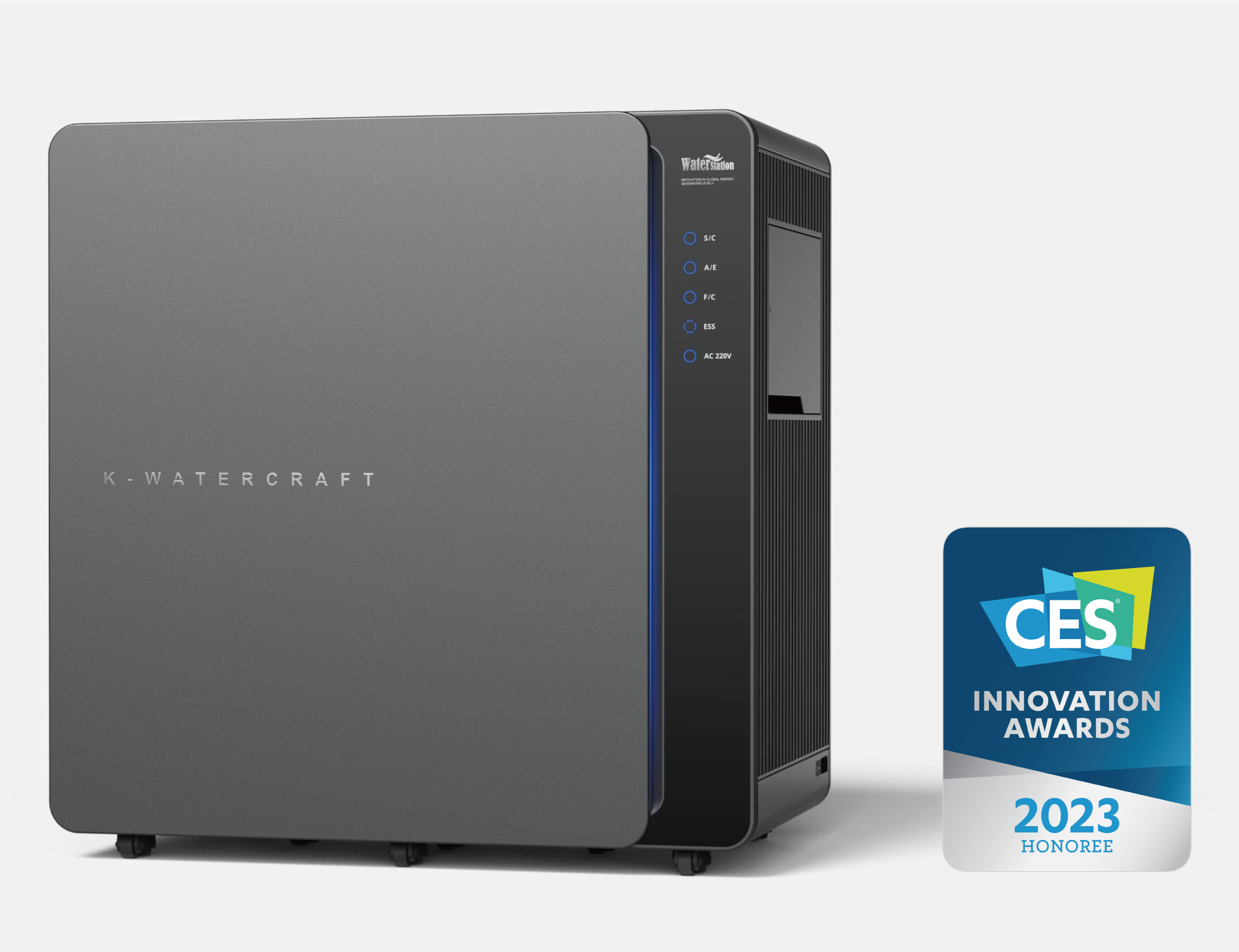

WaterStation
이미지
Energy-Independent
Green Hydrogen
Power System



Power Generation System that Produces and Stores Energy through Solar Power, Water Electrolysis, and Green Hydrogen Fuel Cells without External Power Supply
이미지
WaterStation


Energy-Independent
Green Hydrogen
Power System


Power Generation System that Produces and Stores Energy through Solar Power, Water Electrolysis, and Green Hydrogen Fuel Cells without External Power Supply
Description
WaterStation
이미지
WaterStation is a self-contained power generation system that produces and stores energy via water electrolysis and hydrogen fuel cells.
Description
WaterStation
이미지
WaterStation is a self-contained power generation system that produces and stores energy via water electrolysis and hydrogen fuel cells.

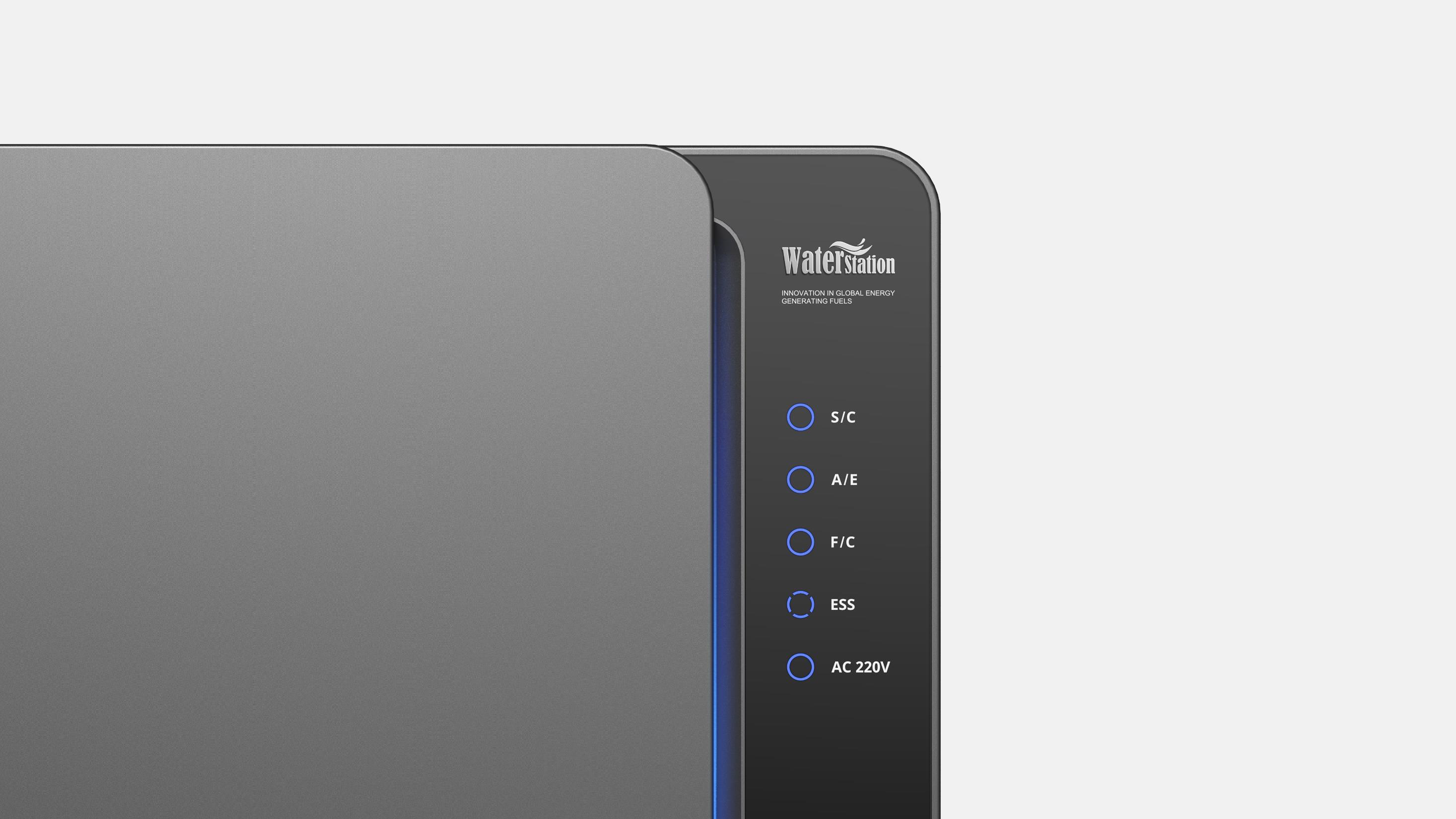

Control Panel
WaterStation
이미지
S/C (Solar Cell)

The energy source for driving the water electrolyzer is supplied from eco-friendly solar cells. The size of the solar cell may vary depending on the installation environment.


A/E (Alkaline Water Electrolysis)

Green Hydrogen is converted into electric energy as a raw material for fuel cells, and clean oxygen is discharged into the atmosphere.


F/C (Fuel Cell)

Electric energy is produced using green hydrogen produced through water electrolysis. The generated electrical energy is stored and utilized as an energy storage system.


ESS (Energy Storage System)

Electric energy produced from fuel cells and solar cells is stored in the energy storage system, and stable power is supplied through optimized energy management.


AC 220V (Output)

Electric energy stored in the energy storage system is stably supplied with 220V electricity through the DC-AC inverter.

Control Panel
WaterStation
이미지
S/C (Solar Cell)

The energy source for driving the water electrolyzer is supplied from eco-friendly solar cells. The size of the solar cell may vary depending on the installation environment.


A/E (Alkaline Water Electrolysis)

Green Hydrogen is converted into electric energy as a raw material for fuel cells, and clean oxygen is discharged into the atmosphere.


F/C (Fuel Cell)

Electric energy is produced using green hydrogen produced through water electrolysis. The generated electrical energy is stored and utilized as an energy storage system.


ESS (Energy Storage System)

Electric energy produced from fuel cells and solar cells is stored in the energy storage system, and stable power is supplied through optimized energy management.


AC 220V (Output)

Electric energy stored in the energy storage system is stably supplied with 220V electricity through the DC-AC inverter.

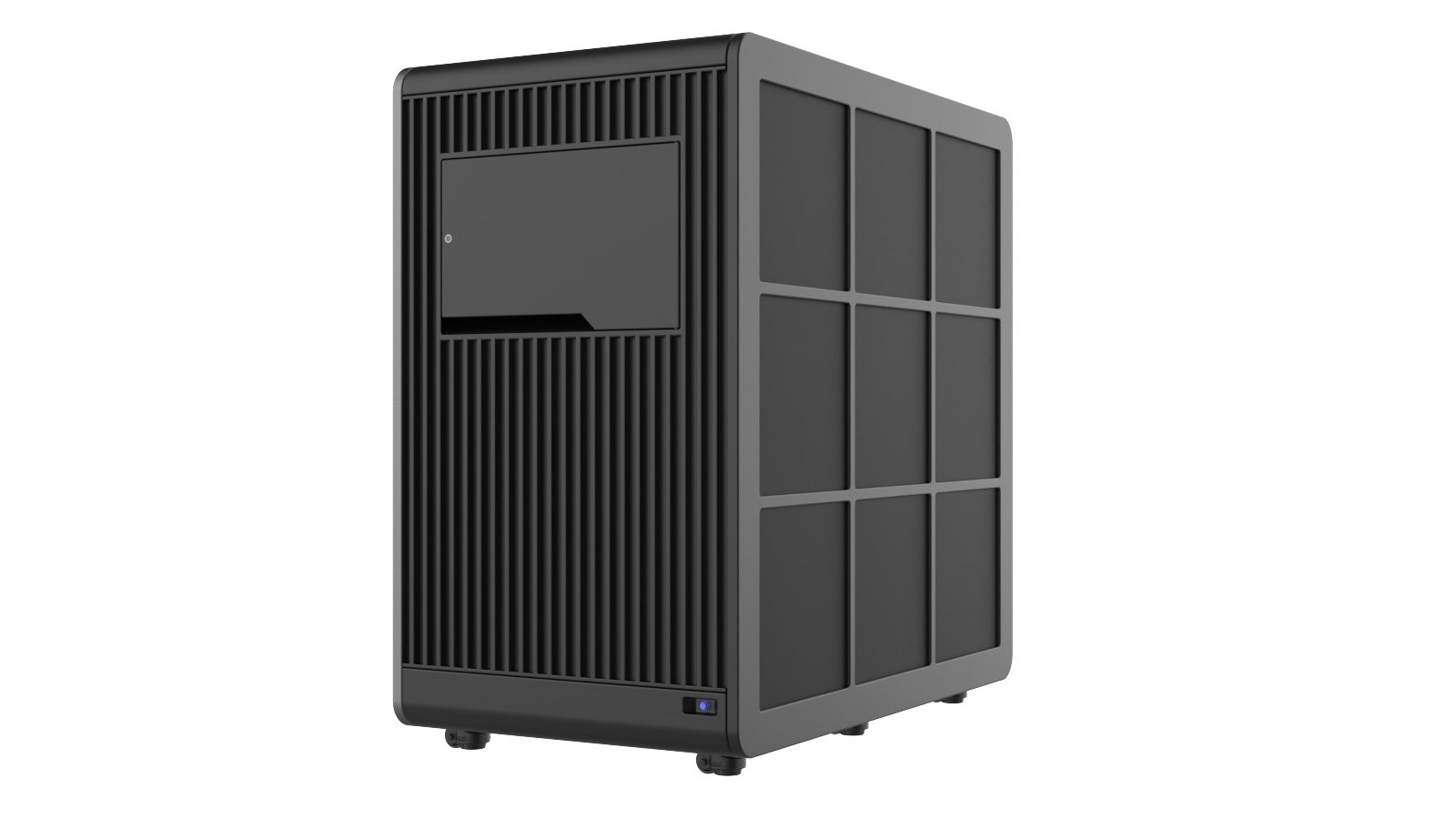

View WaterStation

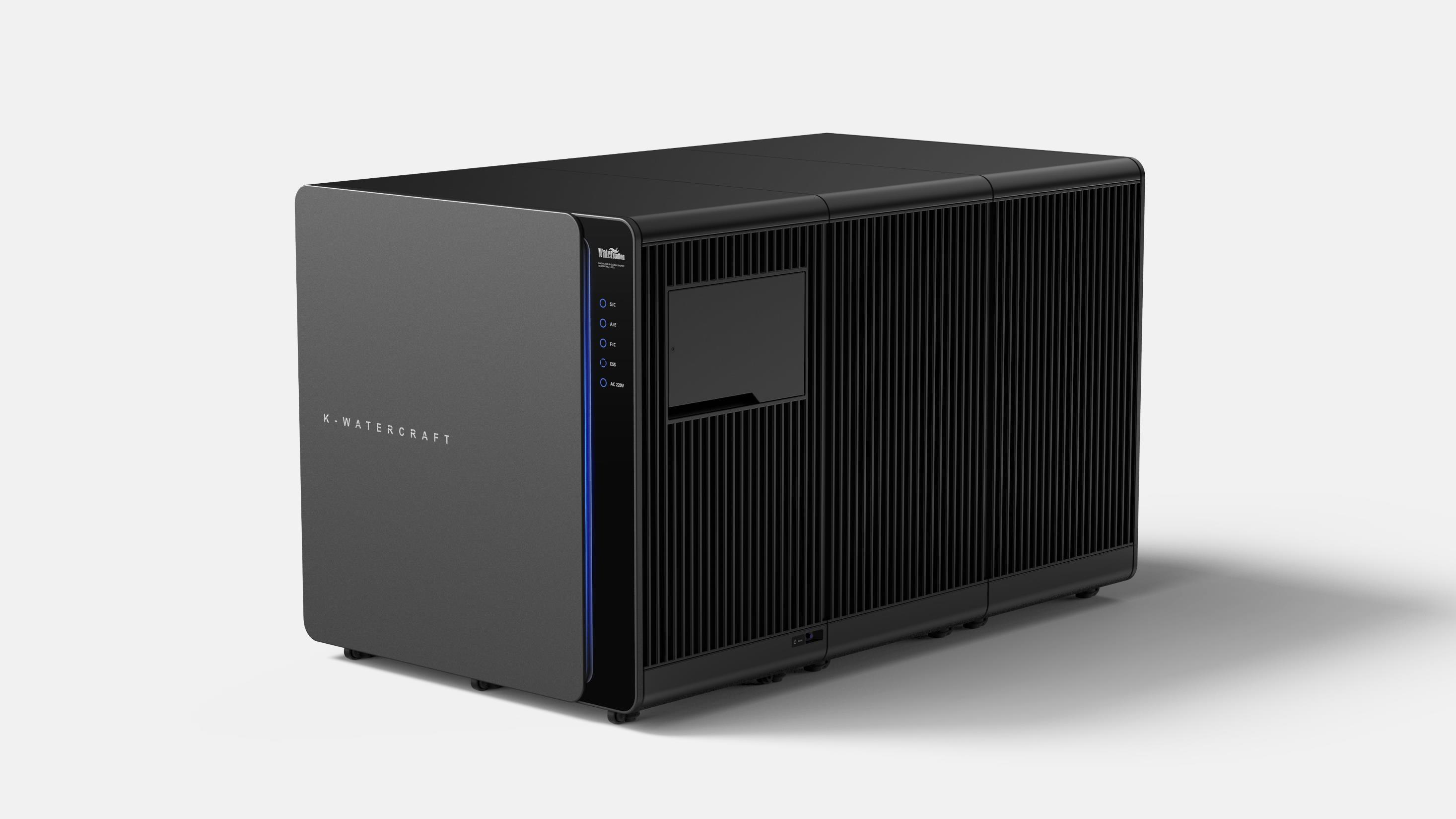

High-capacity power generation through deposition

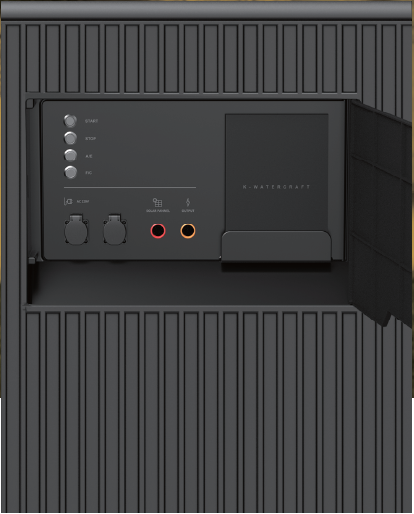

Front
Control Panel

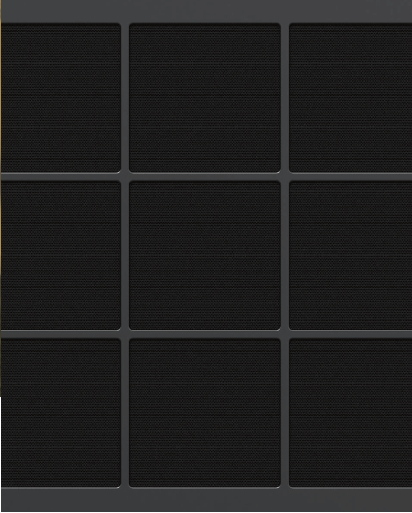

Side
Mesh Material

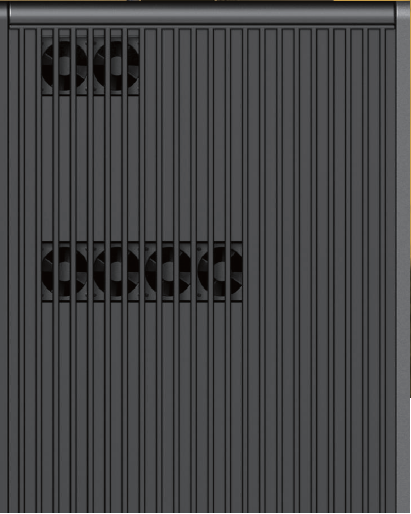

Back
Cooling Fan

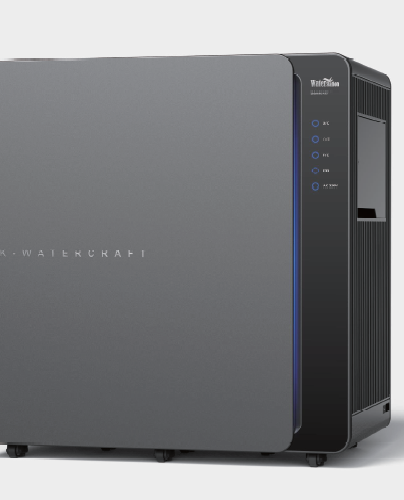

LED
For intuitively grasp

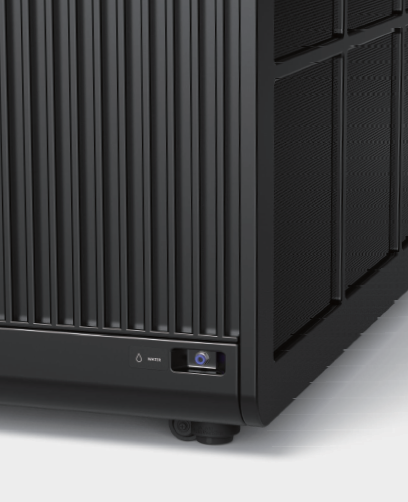

Outlet for Water
For land disspation

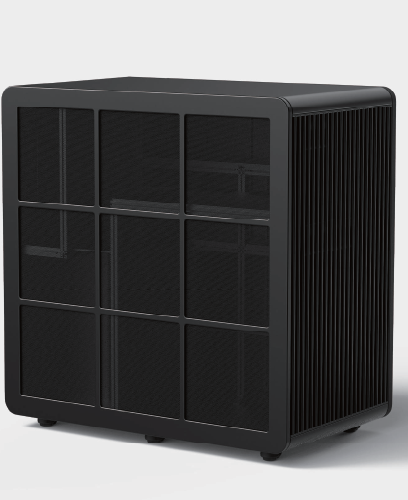

Mesh
For heat disspation
View
WaterStation
High-capacity power generation through deposition
Front
Control Panel
Side
Mesh Material
Back
Cooling Fan
LED
For intuitively grasp
Outlet for Water
For land disspation
Mesh
For heat disspation
Technical Specification
WaterStation
Mechanical
ProductWaterStation
Size1,700(w)×2,000(d)×1,700(h) mm
Weight550 kg
SpecificityWater(Hydrogen) Powered Generator
Fuel Cell Output10 kW
Durability20yrs
(Warranty : fuel cell electrode 7yrs, water electrolytic electrode 10yrs)
Environmental
Operational Temperature Range-10℃ ~ +50℃
Recommended Temperature Range5℃ ~ 45℃
Environmental Humidity Range3~100 % RH
Maximum Elevation2,000 m
Noise Level< 60 dB
Enclosure Protection RatingIP54
HEAT RESISTANCE
Operational in conditions
-10℃ to +50℃
MADE IN KOREA
Design and product
development Localization
RENEWABLE ENERGY
Eco-friendly green hydrogen
energy production
Technical Specification
WaterStation
Mechanical
ProductWaterStation
Size1,700(w)×2,000(d)×1,700(h) mm
Weight550 kg
SpecificityWater(Hydrogen) Powered Generator
Fuel Cell Output10 kW
Durability20yrs
(Warranty : fuel cell electrode 7yrs, water electrolytic electrode 10yrs)
Environmental
Operational Temperature Range-10℃ ~ +50℃
Recommended Temperature Range5℃ ~ 45℃
Environmental Humidity Range3~100 % RH
Maximum Elevation2,000 m
Noise Level< 60 dB
Enclosure Protection RatingIP54
HEAT RESISTANCE
Operational in conditions
-10℃ to +50℃
MADE IN KOREA
Design and product
development Localization
RENEWABLE ENERGY
Eco-friendly green hydrogen
energy production

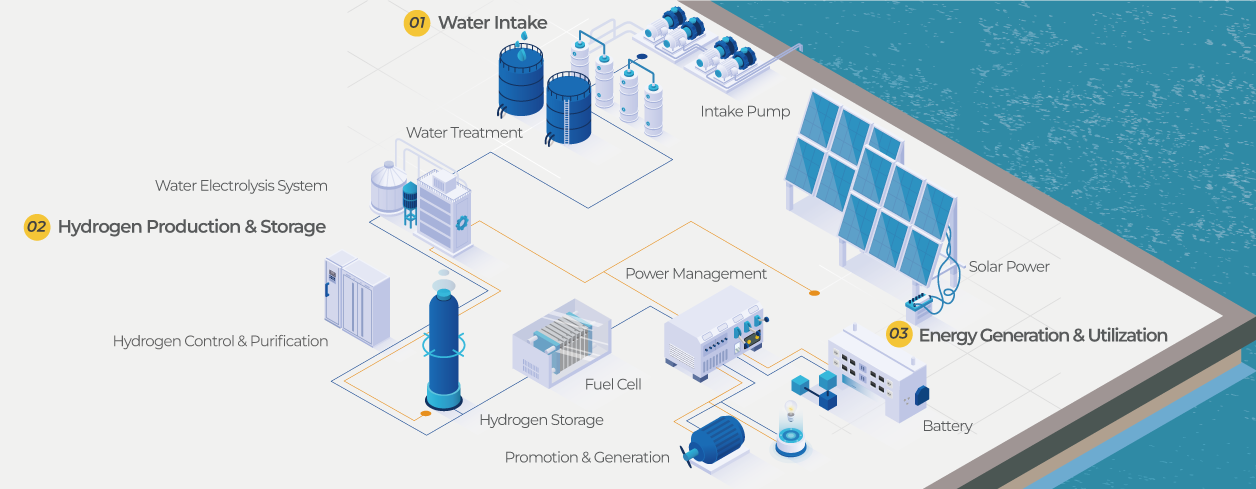

System
WaterStation

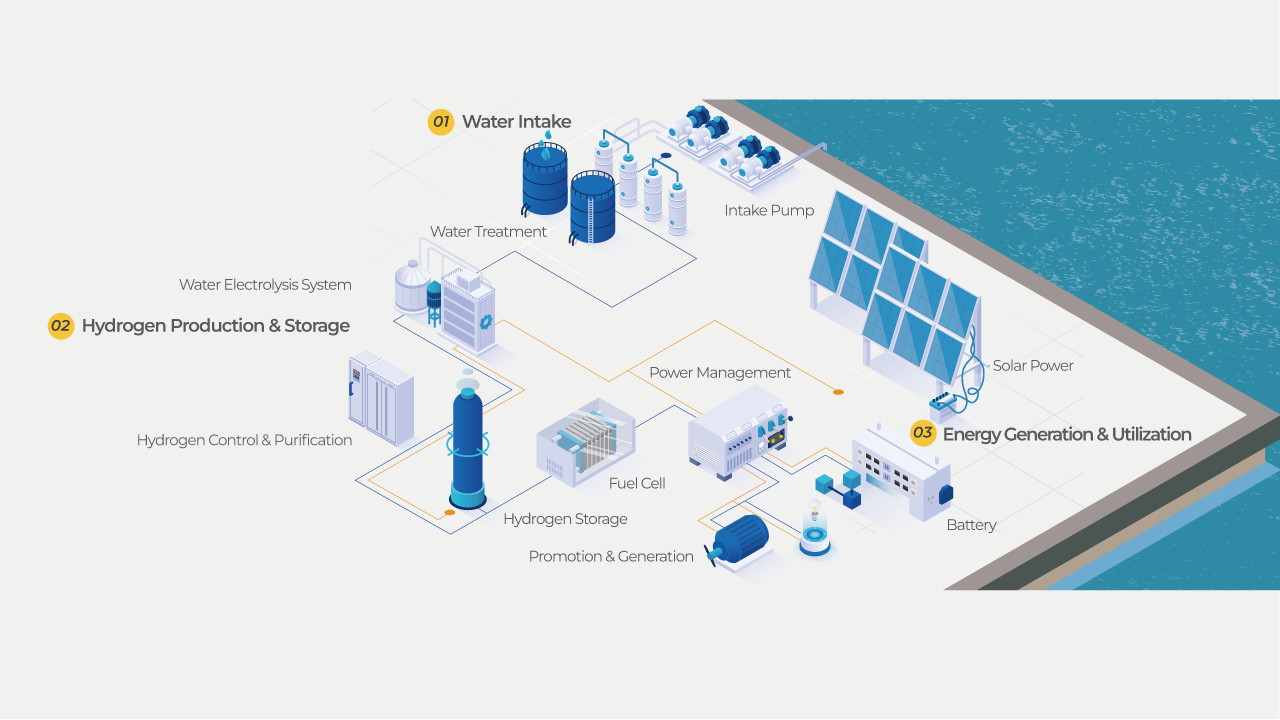

After the operation of renewable energy sources such as solar cell or wind turbine to supply the power for water electrolysis, electricity is supplied to the fuel cell to zero external power use, realizing complete energy independence.
이미지
Water Intake : Secure water source through water intake and advanced water purification treatment (If required)



Hydrogen Production & Storage : Produce electricity through solar cells to operate water electrolyzer with generated power and treat and store produced hydrogen



Energy Generation & Utilization : Generate power through fuel cells and store power in the battery through battery management system and supply to the area where necessary
System
WaterStation

After the operation of renewable energy sources such as solar cell or wind turbine to supply the power for water electrolysis, electricity is supplied to the fuel cell to zero external power use, realizing complete energy independence.
Water Intake : Secure water source through water intake and advanced water purification treatment (If required)



Hydrogen Production & Storage : Produce electricity through solar cells to operate water electrolyzer with generated power and treat and store produced hydrogen



Energy Generation & Utilization : Generate power through fuel cells and store power in the battery through battery management system and supply to the area where necessary
이미지
ENJOY THE FUTURE WITH
GREEN ENERGY
이미지
Energy is Everywhere


1WaterStation uses water as a fuel source, there is no cost burden on fuel and has a virtuous cycle of power generation structure which uses truly ecological fuel to produce eco-friendly energy.
In addition, WaterStation can be customized for each electric capacity, so it is possible to install a self-contained energy system (zero-energy building) in an area with infrastructure suiting customers’ needs. It can also be installed independently in islands, mountains, and uninhabited islands without costly infrastructure. Recognized for its unique value in eco-friendly energy production.
ENJOY THE FUTURE WITH
GREEN ENERGY
이미지
Energy is Everywhere


WaterStation uses water as a fuel source, there is no cost burden on fuel and has a virtuous cycle of power generation structure which uses truly ecological fuel to produce eco-friendly energy.
In addition, WaterStation can be customized for each electric capacity, so it is possible to install a self-contained energy system (zero-energy building) in an area with infrastructure suiting customers’ needs. It can also be installed independently in islands, mountains, and uninhabited islands without costly infrastructure. Recognized for its unique value in eco-friendly energy production.
CEO MESSAGE
In November 2017, at the "2nd General Assembly of the Hydrogen Council"
held in Bonn, Germany, the "Roadmap for Realization of a Hydrogen Economy Society" researched and analyzed by Mckinsey was announced. The roadmap reports that in 2050 hydrogen-related industries will create a market balue of US$ 2.5 trillion per year and create more than 30 million jobs.
As the 4th industrial revolution progresses, new technology development and demand have increased. Therefore, we want to become a fast mover and strive to create new values and new industries through the convergence of technologies. Taking the first step, we have taken it together with K-WaterCraft a company specializing in electrolytic hydrogen fuel cell systems.
We promise to become a company that constantly challenges for a sustainable and clean energy world with a vision that thinks differently from the general and always thinks about change.

Thank you.


CEO Kwon, Soonchul
CEO MESSAGE
In November 2017, at the "2nd General Assembly of the Hydrogen Council"
held in Bonn, Germany, the "Roadmap for Realization of a Hydrogen Economy Society"
researched and analyzed by Mckinsey was announced. The roadmap reports that in 2050
hydrogen-related industries will create a market balue of US$ 2.5 trillion
per year and create more than 30 million jobs.

As the 4th industrial revolution progresses, new technology development and
demand have increased. Therefore, we want to become a fast mover and
strive to create new values and new industries through the convergence of
technologies. Taking the first step, we have taken it together with K-WaterCraft
Co.,Ltd., a company specializing in electrolytic hydrogen fuel cell systems.

We promise to become a company that constantly challenges for a sustainable and
clean energy world with a vision that thinks differently from the general and
always thinks about change.

Thank you.


CEO Kwon, Soonchul
